Permissions best practices

As I happen to write quite a lot about permissions lately, I thought I’d round it off with yet another post.

All permissions available in TFS (I do not take SharePoint or Reporting Services) fall in four categories

• Server global permissions
• Project global permissions
• Source control permissions
• Areas permissions

Certain principles apply to all categories, viz.

1. Try to assign all permissions to TFS groups. That is, use TFS groups (server- or project-level) as containers to one or more Windows (AD domain or local) groups. That way the dependence on IT department is minimal, and it is easy to change the group membership while retaining overall permission structure
2. Minimize permission assignments to users; try to use groups as much as possible. Only situations that are justified (in my opinion) are server/project administrators groups assignments. All other case should be groups. In this manner, you can maintain permissions on higher level (without figuring out how certain user is different from the rest)
3. Use Deny sparingly, since if the user is not admin and you deny access in one of his groups, it will not be easy to find which one
4. Allow some time for permission assignment to get synchronized to the TFS database. Frequently, the users will want the permission to become effective there and then. But TFS has certain latency in updating the effective permissions, and if you plan permissions changes in advance you will avoid lots of time and prevent users frustration.

And now I would like to touch some version control specific permission issues (since this is by far most complicated topic, not in the least because inheritance is allowed in version control)

1. Set as few permissions as possible. Ideally, you would set permissions on server, project and immediate project subfolders at most (and set server/project permissions by assignment to appropriate pre-defined groups). That way you will be able to immediately know where to look for the “root” of any permission problem.
2. Never set permission on files (that can be viewed as more of the same topic as in previous paragraph, but I cannot say that enough).
3. Use inheritance as much as possible; start with most permissive set-up and partition by using Deny.
4. If you find yourself setting certain permissions more than once, script them using tf permissions (use tfssecurity for global and area permissions). In this way potential for human error is minimized.

And to conclude, I would highly recommend not just set permissions ad hoc as you go along, but create some permission model (I know it sounds big, but Excel table that clearly delineates the common groups and permissions set may well be sufficient). If you are not sure – start with default groups and permissions, and assign your users appropriately to default groups. Believe me, that would be way better than creating complex permissions soup that your users swim in (and hate you all the while – and they will let you know their feelings).

By the way, you might want to watch Sidekicks blog for the soon-to-happen new release announcement (that will include Permission Sidekick). Stay tuned!

Related posts
When permission inheritance is a godsend
When permission inheritance is evil
Deny or allow – who wins? A sequel
Deny or allow – who wins?

Work Item Customization tidbits: Special Fields (part 8 of X)

Before you consider customizing work items, you probably should be aware of existence of the “special” fields, that behave differently from the custom ones you define. In most cases you will have to use the special fields in your custom type, so to understand peculiarities of the behavior is pretty important.

Most of those fields are defined in System.XXX refname space (I will omit the namespace specifier for all System fields below); let me enumerate them and detail their behavior.

Read-only fields are always available for all work items, and yet you do not have to do anything to define them. The fields are:

• Id – work item unique (within TFS server) identifier
• TeamProject – work item Team project name
• WorkItemType – work item type name
• CreatedBy – user who created WI
• CreatedDate – datetime of WI creation

Calculated fields relate to work item links (set in LinksControl  and AttachementsControl in UI). The names are self-descriptive:

• AttachedFileCount – number of files attached to WI
• HyperLinkCount – number of links (URLs) in WI
• ExternalLinkCount – number of links (version control artifacts) in WI
• RelatedLinkCount – number of links (to other WIs) in WI

Auto-updated read-only fields are different from read-only fields as they are updated every time work item is changed:

• ChangedBy – user who last changed the work item
• ChangedDate – datetime of the last change
• Rev – current revision of work item

And now, very special fields – so special that they represent a category onto themselves.

AreaPath/IterationPath fields – represent WI area/iteration. Those tree values are represented as tree in UI and can be displayed only in WorkItemClassification control. Not all behaviors are applicable to those fields (for example, they cannot be made mandatory)
And most importantly, those fields are basis for WI grouping and security model, and as such are provided separate dedicated UI. In that UI one is able to view or modify areas/iterations as well as assign permissions to them. By allowing WORK_ITEM_WRITE/WORK_ITEM_READ, it is possible to control whether certain groups of users may edit/view work items (and whatever WI appear in the WIQL reports).

State field has its values and behavior defined in dedicated WORKFLOW section.

Reason field is also defined in WORKFLOW section and its values are dependent upon state. It becomes enabled only on state change, and its behavior cannot be changed.

History field cannot be modified or used in any way except for display in WorkItemLogControl; no other behaviors are supported (by the way, similar display controls – LinksControl for WI links, and AttachmentsControl for WI files attachments – do not even have associated fields, only UI controls)

And finally, there are not so special but yet very important System fields that are recommended for use in every work item – Title (for work item title), Description (for WI textual description) and AssignedTo (for user assigned to specific WI).

Additionally, I would like to mention fields defined in different Microsoft.VSTS.XXX namespaces, that you should consider using when customizing your work items. For those fields, you do not get extra behaviors as for some of System.XXX fields, but out-of-the-box templates can be used as a good example of usage for those common fields and provide an easy start for customization. I will list several most interesting fields:

Microsoft.VSTS.Common fields

• StateChangeDate – date of the last state change
• Rank – work item priority (numeric)
• ActivatedBy/Date – date the work item becomes active (and who activated it)
• ClosedBy/Date – date the work item becomes inactive (who deactivated it)

Microsoft.VSTS.Scheduling fields

• StartDate – date of WI (task) start
• FinishDate – date of WI (finish

Microsoft.VSTS.Build fields

• FoundIn – build the WI discovered in
• IntegrationBuild – build the WI was first integrated in

FoundIn and IntegrationBuild fields provide most interesting automated behavior connected with builds. When you perform a first build in Team Project, global list with the name “Builds - [Team Project name]” is created by TFS and is associated with the fields in all work item types in the project (using SUGGESTEDVALUES behavior). The mechanism uses TFS eventing model (see the detailed post by Jason Prickett). After the list is created, each subsequent build is added to that global list and in such way available for selection in work items.

Related posts:
- Work Item Customization: fields maintenance (part 7)
- Work Item Customization: global lists (part 6)
- Work Item Customization: system fields (part 5)
- Work Item Customization: user interface (part 4)
- Work Item Customization: state transitions (part 3)
- Work Item Customization: conditional field behavior (part 2)
- Work Item Customization: fields definition (part 1)

When (permission) inheritance is a godsend

In a previous post I talked about some issues you might encounter when transitioning from inherited to explicit permissions in TFS source control.

However, if you do not wish to completely disable permissions inheritance, there are some nice surprises in TFS permission management for you.

Let’s consider the same folder structure as in previous post

$/Project

   Source

       Common

       Proprietary

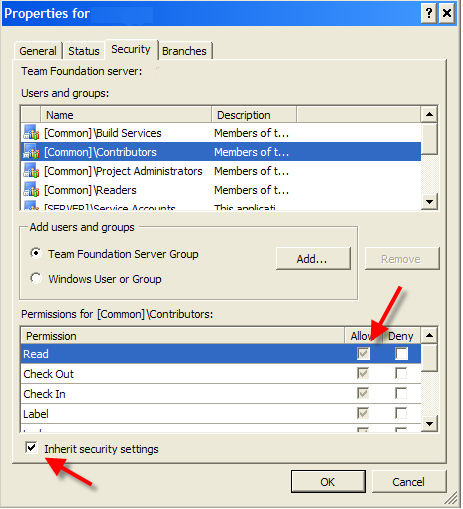

The settings for group “Contributors” on Proprietary folder are inherited from the project, and include “Check In” set to Allow.

Suppose we want to deny the “Check Out” permissions on that folder for “Contributors”, but unlike the scenario previously discussed, that is the only thing we want to change. The rest of the inherited settings should be retained. To do that you need to do three steps:

1. Uncheck “Inherit security settings” checkbox (note how all permissions are unset)

2. Deny check out for “Contributors”

3. And lastly one step that is not obvious at all – check “Inherit security settings” checkbox again

Voila! Now you have all permissions inherited from the parent folder intact, but one specific permission denied.

It is worth noting, that you cannot explicitly allow permissions, denied in the parent folder (since explicit Deny on parent will override any permissions set to Allow).

Now that you have read this post, you have officially joined the secret sect of TFS permissions administrators :).

StyleCop confusion cleared

As Brian Harry and Jason Allor blog about how easy series of misunderstandings may give birth to conspiration theories, I thought I’d drive some of the points they raise home and talk about what’s common and what’s different between FxCop (and Team System Static Code Analysis at that) and StyleCop.

1. FxCop runs on .NET binaries (thus your code must pass compilation) and does not require source code; StyleCop runs solely on C# source files. Thus while FxCop essentially works for any .NET assembly, StyleCop is limited to C# source files (and essentially, this files may not even compile)
2. Team System Static Code Analysis is integrated into Visual Studio project properties, has standard check-in policy and analysis results can be published to TFS data warehouse and as such are reportable. StyleCop is out-of-band tool with limited integration to Visual Studio (very similar to FxCop stand-alone executable)
3. FxCop supports analysis suppression attributes (on element or module level); StyleCop does not.
4. Team System Static Code Analysis product is actively developed as part of next version of Visual Studio (“Rosario”); StyleCop most probably will always be unsupported tool with limited dedicated development
5. And finally, the biggest difference – while StyleCop verifies source code and documentation formatting for C#, FxCop (and Team System Static Code Analysis) is the tool checking the binaries for conformance to design and development guidelines [while FxCop includes Naming rules, it is just part of its rules inventory].

The only thing one can expect from StyleCop analysis is more maintainable code (since source code becomes more uniform and compliant to coding standards). From using FxCop analysis one may expect actual improvement of the code by elimination of design/development flaws as well as making code compliant to common naming conventions.

The overlap between two tools is minimal – here is the table of StyleCop rules that also exist in FxCop:

Rule ID	Rule Name
SA1401	FieldsMustBePrivate
SA1300	ElementMustBeginWithUpperCaseLetter
SA1301	ElementMustBeginWithUpperCaseLetter
SA1302	InterfaceNamesMustBeginWithI
SA1303	ConstFieldNamesMustBeginWithUpperCaseLetter
SA1304	NonPrivateReadOnlyFieldsMustBeginWithUpperCaseLetter
SA1305	FieldNamesMustNotUseHungarianNotation
SA1306	FieldNamesMustBeginWithLowerCaseLetter
SA1307	AccessibleFieldsMustBeginWithUpperCaseLetter
SA1308	VariableNamesMustNotBePrefixed
SA1309	FieldNameMustNotBeginWithUnderscore
SA1310	FieldNamesMustNotContainUnderscore

Only other rules that are code-related rather than formatting-related are the following rules:

Rule ID	Rule Name
SA1404	CodeAnalysisSuppressionMustHaveJustification
SA1405	DebugAssertMustProvideMessageText
SA1406	DebugFailMustProvideMessageText

The rest of StyleCop rules deal with C# source code formatting or code comments.

To conclude, FxCop is more about telling you how you ought to do things, while StyleCop is all about how you should format the source code for the things, no matter what is in that source code.

Myself (while I like arguing about code formatting) FxCop is unquestionably has more value. How about you? Does your “mileage” vary?

Deny or Allow – who wins? A sequel

In a previous post, I have explored the details of effective permission evaluation in TFS.

As a supplement for this post (and generally as a reference for everyone managing TFS permissions), I highly recommend a recent “TFS Roles and Security” reference poster from Willy-Peter Schaub, Team System MVP from SA. The poster details available permissions, default TFS server and projects groups and their assigned permissions and how effective permissions are determined.

And while we are at the topic, check out additional reference posters available from Willy-Peter. These posters are different from boring bunch of tables that you might expect from your previous experiences; take a look for yourself how information presented in graphical way becomes more accessible. For example, compare “Roles and Security” poster with MSDN article providing essentially same information.

Work Item Customization: fields maintenance (part 7 of X)

When discussing work item type fields definitions, I have intentionally left out the maintenance aspects (to simplify things). Now let us handle some of the complexity related to field definitions.

It is important to understand that all fields defined per work item type are actually defined per Team Foundation server. Defining field in work item may be likened to adding new record to fields’ “global table” (containing name, refname and type columns) with all work item types using that global table. Thus when field is renamed (using witfields rename utility), its name changes for all work item types using that field

Moreover, when you add field to your work item type, and some work item type has already used the same refname, you cannot override either data type or field name. And the following additional constraints apply:

• When field is removed from specific work item type, it does not cease to exist on server (even if it is not used by any work item type); to remove field it needs to be explicitly deleted
• When field is being deleted (using witfields delete), it should be first removed from all work item types
• When the field deleted was used for reporting (reportable attribute set), then you will have to rebuild data warehouse to purge old field and its values

Just imagine that you have created custom work item type and it uses certain field (CR_ID, integer, reportable), then used it in twenty Team projects. If now you need to change field CR_ID type from integer to string, that will involve the following:

• Remove field from WI type definition in all twenty projects
• Delete field from WIT database
• Rebuild data warehouse
• Add field to WI type definition in twenty project

Did I bring my point home – the point being field maintenance (add/delete and to a degree rename) is expensive? The morale of the story is that if you are going to add new field and especially if you desire to delete field, “measure twice, cut once”. Sometimes it may be better to leave unused field (that is not currently used by any WI type) hanging in there rather than going for deletion spree.

When (permission) inheritance is evil

One of the areas of Team Foundation Server that I constantly wish would become better is management of permissions inheritance. To illustrate, let’s assume that you have the following structure:

$/Project

   Source

       Common

       Proprietary

Now, let’s say that you have “Check In” permissions (and bunch of other permissions) set to Allow on Project level for group “Contributors”. Since by default inheritance is enabled, the same permissions apply to all subfolders.

But now you need to disable “Check In” and “Check Out”  for "Contributors" on Proprietary folder; and you do not want to Deny the permissions (since if the user belongs to other authorized group he still may modify the files). Thus you want to disable the inheritance altogether and unset Check In/Check Out, while retaining the rest of permissions.

So you right-click on Properties in Source Control Explorer, un-check "Inherit Security Settings" checkbox, previously disabled (since the permissions were inherited) authorization settings checkboxes become enabled (as expected) and ... simultaneously cleared. What? How am I supposed to remember all previously set checkboxes? [If you think it is innocent, remember that un-checking Security Settings checkbox will clear settings for all groups!]

So what is the solution of this usability problem? I hate to tell you, but I do not have one real good solution. The one I have been using is to become close friends with tf permission command-line client. Once you become friends, make sure that you script reusable permissions sets as a batch file. While not perfect this approach may still help you to retain your sanity on a bad day.

Update: the above applies only to situations where you disable inheritance completely.

Knowing what to rant about

When I vented my feelings on Jeff Atwood’s naive view of commercial software development, I did not have any statistical data. For example, in his post Jeff talked about how MS Test sucks vs. NUnit and how nobody is using it.

And now, thanks to the poll that Roy Osherove did, there are some data at least to argue that claim. In his original post, he asked what what unit test framework people use, what mocking framework and what threading objects are most frequently used.

Now that the votes are all counted, everyone can see that MS Test beats everything but NUnit and was used by 27% of those responded (NUnit was 47%). Of course, you can discard the poll as not representative enough, but Roy's readers are pretty advanced bunch.

The data in the poll surely undermines Jeff’s claim that “Everybody I know who has tried to use the MSTest flavor of unit tests has eventually thrown up their arms and gone back to NUnit”. I have used both NUnit and MSTest, and while the latter may lack some features for advanced users, in general it is very decent framework with decent integration into Visual Studio.

What I really wanted to say is that it pays to experience things first-hand; if you evaluate something, do not be swayed by popular opinion without evaluating software and do make your very own opinion.

And another data in Roy’s poll (somewhat unrelated to the topic of the post) is the relative usage of threading primitives. Who could have thought that in year 2008 the close second is Thread.Sleep? Underlines the importance of code reviews, that :)

What TFS SDK samples do you need?

If by any chance you read my blog and do not read Brian Harry’s blog (probably it is other way around), make sure you download and preview new TFS extensibility sample and provide him feedback what is missing from this sample and what samples you would like to have in general. The sample is hot from the oven, and expands on the details from classic Ed Hintz post.

Personally, I’d be interested to know how many people would like to extend Team Explorer and what extensibility scenarios you are looking to implement in general.

Deny or allow - who wins?

If you ever tried using permissions in TFS, you know that there are four kinds of permission settings that can be set for the user or group(Explicit/Implicit Allow and Explicit/Implicit Deny). Specific effective permission is defined as combination of permission settings set for user and all groups the user belongs to; the settings are combined according to the following order of precedence (from more potent to less potent setting)

• Implicit Allow is defined when user is a member of Team Foundation Administrators group or [Project]/Project Administrators group
• Explicit Deny is defined when Deny is explicitly set for user/group
• Explicit Allow is defined when Allow is explicitly set for user/group
• Implicit Deny (None) is in effect when no setting is specified

Two most important rules out of four (that are frequently forgotten and lead to “unexplained” effective permissions) are “Implicit Allow” (if the user is in admin group, the effective permissions are “everything is allowed” no matter what) and “Explicit Deny” (if Deny is set somewhere and user is not an admin, you better find that somewhere; no amount of additional “Allow” set will help).

Let’s illustrate the above with the example. Assume that there are four groups defined: Team Foundation Administrators, Contractors, Developers and Testers; and the permission settings for “Read” permission on $/Project folder are defined as following:

Group	Allow	Deny
Team Foundation Administrators
Contractors		Set
Developers	Set
Testers

In the example below, the users effective Read access will depend on the combined group membership (as an exercise, the last column is made invisible – select it to see the answer):

User name	Team Foundation Administrators	Contractors	Developers	Testers	Can read?
User 1	X				Yes
User 2		X	X		No
User 3	X	X			Yes
User 4			X	X	Yes
User 5		X		X	No
User 6				X	No

Since current version of TFS does not provide effective permission indication in UI, the exercise above is something you will have to perform now and again.

This piece of wisdom (together with lots of additional pieces) can be found on MSDN; if you are planning permissions rollout or find yourself in a tight place staring at permissions set and not understanding why the things do not work as desired this is where you go.

Thanks to Brian Randell and Sam Heald for this post idea.

View of the interview

Just read an awesome post by Sasha Goldshtein on “Harmful Interview Questions”. As it happens, I also did (do) my share of both interviewing and being interviewed, and I fully subscribe to his views.

To me, the developer position candidate should first and foremost pass hands-on-test (preferably using programming language, technologies and IDE the candidate is interviewed for). That would make up 60% of the result, with other 40% made up with how well candidate communicates, past projects knowledge etc.

But somehow many companies still attempt to make intelligent decisions based on exactly kind of questions identified in Sasha’s post. More power to them.

Work Item Customization tidbits: global lists (part 6 of X)

In previous installments on work item customization, I talked more about general syntax of custom work item types and less about how this syntax is applied. Today I’d like to talk about WI syntax that can be used to minimize complexity in maintaining custom work item types.

One way to simplify the maintenance across different work item types is to have some definitions global to Team Foundation server. TFS WIT provides such mechanism aptly called global lists. Global list is exactly what its name says - list of values global to Team Foundation server; by global I mean that it can be used by any work item types on the server.

Let’s digress for a moment into details of list definitions in work item templates. To define the list box in work item (some call it combo box), one needs to do the following:

• Define field with one ALLOWEDVALUES/SUGGESTEDVALUES multiple values specifier
• Associate the field defined with FieldControl in UI

Now if we define list field, how it can be modified to use a global list? Let’s start with Priority field as defined in MSF bug work item template:

<FIELD name="Priority"

      refname="Microsoft.VSTS.Common.Priority"

      type="Integer" reportable="dimension">

  <ALLOWEDVALUES>

    <LISTITEM value="1"/>

    <LISTITEM value="2"/>

    <LISTITEM value="3"/>

  </ALLOWEDVALUES>

</FIELD>

Leaving aside specifics of global list definitions, assume for a moment that we have global list called “Priorities” containing values 1, 2, 3 defined; then Priority field can be defined as following:

<FIELD name="Priority"

      refname="Microsoft.VSTS.Common.Priority"

      type="Integer" reportable="dimension">

  <ALLOWEDVALUES>

    <GLOBALLIST name="Priorities"/>

  </ALLOWEDVALUES>

</FIELD>

Now if priorities list needs to be changed across all work item definitions, it is sufficient to change one global list. The scenario is also flexible enough to allow modifying single template without affecting the rest; the following definition uses combination of global list and values specific to current template:

<FIELD name="Priority"

      refname="Microsoft.VSTS.Common.Priority"

      type="Integer" reportable="dimension">

  <ALLOWEDVALUES>

    <GLOBALLIST name="Priorities"/>

    <LISTITEM value="Undefined"/>

  </ALLOWEDVALUES>

</FIELD>

The global list may be defined in two ways – either as part of work item template or separately using glexport/glimport command line utilities (in the latter case, global list is represented as xml file). Several caveats to be aware of when defining and using global lists:

• Global list values cannot be modified (only replacement of the whole list is supported); when you include global list definition in WI template or use glimport, if the list exists the whole list will get replaced. For that reason, I do not recommend placing global list definitions into WI template but rather to create global list prior to using it in any templates (make sure you modify templates that you get through witexport; witexport will always include related global lists in work item definition)

• Global list cannot be deleted (there exists a workaround - if you are using VS2008, Power Tool destroygl can be used for the purpose)

One additional important scenario that global lists help in solving is bringing external data over to TFS Work Item Tracking system. Suppose that you need to have list of project codes from external system (f.e. payroll) available in TFS work item; and the catch is that the list is updated in external system every now and then. The first step is obvious – define the project codes list as a global list, and make sure all work item templates use it. The second step is to make sure the global list gets updated when new projects are added in external system. Simplest solution to this would be to import list of project codes into XML file from external system and schedule glimport to run overnight. Or for more complex situations, one could use TFS extensibility API (most notably ImportGlobalLists method of WorkItemStore) to write custom updater.

To conclude, while using global list may require some extra thought in designing custom work item types, the benefits you’ll reap in maintenance are huge.

Related posts:
- Work Item Customization: system fields (part 5)
- Work Item Customization: user interface (part 4)
- Work Item Customization: state transitions (part 3)
- Work Item Customization: conditional field behavior (part 2)
- Work Item Customization: fields definition (part 1)

MVP reloaded

I have opened my email client (Outlook naturally) on 1st of July, and immediately saw an email with the subject [MVP] Congratulations! You have received… You guessed it – I’ve got MVP award for the second time in a row. Thanks Microsoft!

It was pretty eventful year for me on all fronts; I have thoroughly enjoyed communicating with Microsoft product team and fellow MVPs, and I still like what I do community-wise, so see you around!

Does Microsoft bashing become fashionable?

Usually I refrain from discussing general software topics (since tastes do differ, in software even more so than in real life), but I was really rankled by recent Jeff Atwood’s post.

I believe Jeff handles the matter in very naive and simplified manner. “Why Microsoft has to rewrite NUnit instead of re-using it”? Why indeed? Even if we discard copyright and other legal issue (which Microsoft generally does not do, and for the good reason, with all litigation going against the company), how about the support? You take something open source and who is going to support it – MS or original community? And what happens if there is a bug in the open source software integrated into commercial product – who is responsible for that? MS or the community? And ultimately, who gets blamed in the end? I am willing to bet whatever that same people pushing MS to re-use existing open source will jump and wave their hands saying that MS again released buggy software if bug occurs in open source project integrated with MS solutions.

And how about comparing Team System to assembled stack of open source tools? When you are the biggest software company in the world, and a commercial one at that, you want to take bunch of products from other vendors, with different licenses, using different technologies and use them in your flagship product. Or you want to use your own product stack and technology to create your solution, aligned with your customers expectations? Sounds like no-brainer to me.

So should MS provide better extensibility into its products? Absolutely. Should it use open source in its commercial offerings? May be, but I do not think many people reading my or Jeff’s post have good notion of what is really involves (including Jeff and myself).

And it seems to me that it really does not become to Jeff to come out with that kind of simplistic attitude. With 100K blog readers I find that simplicity somewhat embarassing. Or may be I have just missed the point altogether (since I do not drink soda and soda analogies were lost on me)?

P.S. And read the comments to Jeff's post too. It appears that everybody and his dog knows more than MS folks. Pretty educating, that

A Rule A Day: MarkMembersAsStatic

Today I’d like to talk about one of my favorite rules - “Mark Members As Static” MarkMembersAsStatic rule (CA1822). The rule is triggered when you have methods in class that do not use instance members and therefore can be declared as static:

public class StaticTest

{

    // ... implementation

    // fires CA 1822

    public void Log1(string message)

    {

        Trace.TraceError(message);

    }

    // does not use instance and is static

    public static void Log2(string message)

    {

        Trace.TraceError(message);

    }

}

The rule is listed under “Performance” category, and here is why: when you declare method as static it (obviously) affects MSIL code emitted. As shown below, the method declarations will differ in one keyword (I have omitted the method implementations as it is exactly the same):

// static method

.method public hidebysig static void Log2() cil managed { ... }

// instance method

.method public hidebysig instance void Log1() cil managed { ... }

So where is the “performance” difference between two methods? It turns out, when you call those methods different MSIL gets generated using different opcode to call static vs. instance methods (call vs. callvirt). Here is the source code:

public class StaticTest

{

    // ...

    // static method call

    public void TestStatic()

    {

        StaticTest.Log2();

    }

    // instance method call

    public void TestInstance()

    {

        StaticTest test = new StaticTest();

        test.Log1();

    }

}

And here is generated MSIL code:

// static method call

.method public hidebysig instance void  TestStatic() cil managed

{

  .maxstack  8

  IL_0000:  nop

  IL_0001:  call void StaticTest::Log2()

  IL_0006:  nop

  IL_0007:  ret

}

// instance method call

.method public hidebysig instance void  TestInstance() cil managed

{

  .maxstack  1

  .locals init ([0] class StaticTest test)

  IL_0000:  nop

  IL_0001:  newobj instance void StaticTest::.ctor()

  IL_0006:  stloc.0

  IL_0007:  ldloc.0

  IL_0008:  callvirt instance void StaticTest::Log1()

  IL_000d:  nop

  IL_000e:  ret

}

The potential performance hit is hidden behind the opcode: as callvirt calls method on instance, it will throw NullReferenceException if the instance is null (as defined in CIL standard for callvirt opcode); on the other hand, call instruction does not require instance. In MSIL generated from C#, every instance method call will result in callvirt emitted (“why” is explained in Brad Abrams post); as far as performance is concerned, that means that for every instance method call, the check for null reference will be performed (regardless of whether method makes use of instance members). Thus if one has performance critical code, and has lots of methods that may be made static, fixing MarkMembersAsStatic violations can improve performance.

I hear you saying “Whoa, and how big is that performance gain?”. Well, myself I am pretty skeptical about significant performance increase; and I could not think about realistic enough benchmark to test it.

However, I still like this rule very much and here is why – it is my silver bullet against procedural programming style code written in C#. Here is how it goes: if you run code analysis on the code that is being reviewed and get a whole lot of MarkMembersAsStatic violations, then you might be looking at one of the following:

1. Utility function that is integral part of the class. My rule of thumb is that there should be limited number of such functions per class definition, and they should be protected/private.  If that’s the case, the rule violation is fixed by adding static keyword to utility methods (with the added benefit of clarifying the class interface; now it is clear which methods are “global” and not customizable per class inheritance chain).

2. Utility static class hidden in another class definition. If the number of static utility functions defined is large (absolute number or percentage relative to total number of members), it is worth checking whether static routines should be grouped in another (static) class. In such case to fix the rule violations the utility class should be created and used throughout the code.
What I like about having utility classes separate from code describing entity and its behavior, is that by virtue of separating this functionality you increase chances of code reuse. Just consider how likely you are to discover and reuse something contained in DirectoryUtilities class over, say, Patient class.

3. Procedural-style code disguised as static methods. This is the situation where MarkMembersAsStatic help can be invaluable. Basically, what happens is this: you have valid class (judging by interface), and then it turns out that most (if not all) methods can be declared static (MarkMembersAsStatic violations). Then it may be case of static utility class or alternatively behavior separated from data. To illustrate the latter, here is simple example:

    public class Patient

    {

        public string Id

        {

            get { ... }

        }

    }

    public class PatientManager

    {

        public static bool IsSamePatientId(Patient patient1,

                  Patient patient2)

        {

            if (String.IsNullOrEmpty(patient1.Id) &&

                   String.IsNullOrEmpty(patient2.Id))

                return true;

            return (String.Compare(patient1.Id,

                             patient2.Id, true) == 0);

        }

    }

Generally, I am of the opinion that in such cases the behavior belongs to the entity providing data (in the example above, Patient class should implement relevant method):

    public class Patient

    {

        public string Id

        {

            get { ... }

        }

        public bool IsSameId(Patient patient)

        {

            if (String.IsNullOrEmpty(Id) &&

                  String.IsNullOrEmpty(patient.Id))

                return true;

            return (String.Compare(Id, patient.Id, true) == 0);

        }

    }

Before C# 3.0, one could argue that if the class cannot be modified (f.e. belongs to System or 3rd party libraries), the procedural approach has its uses. But with the extension methods in C# 3.0 desired behavior may be attached to whatever class.

Thus to conclude, to me finding static methods not marked as such is less about performance and more about finding out (especially when researching unknown code) the interface design quality and “object-oriented”ness of the code, and I recommend it as an instrument for the code review (though your mileage may vary ;).

Related posts
- Design CA1009 DeclareEventHandlersCorrectly
- Performance CA1810 InitializeReferenceTypeStaticFieldsInline
